Honda Vezel RU3 Cabin Air Filter Replacement Guide

Source-reviewed step-by-step Honda Vezel RU3 cabin air filter replacement guide using Honda owner-manual procedure with clearly labelled schematic illustrations.

DifficultyEasy
Time5–10 minutes
VisualsIllustrated prototype
CarFactBook visual evidenceSchematic illustration · exact geometry not claimed

Action sequence has been checked against Honda's owner manual. Artwork remains schematic and does not claim exact RU3 component geometry.

Procedure evidenceSource-reviewed procedure

Honda's archive identifies RU3/RU4 as first-generation VEZEL Hybrid chassis codes; this guide is scoped to RU3.

The source verifies the action order and AIR FLOW-down installation direction. It does not make CarFactBook's generated artwork exact geometry.

Honda VEZEL Hybrid owner manual · Page 341 — Air clean filter replacement ↗
Exact-car fact used by this guideCabin filter service interval: Replace every 15,000 km or 1 year

Honda owner-manual cabin air-filter replacement interval.

Open verified RU3 reference →
Keep the exact vehicle context

Continue with Honda Vezel RU3

Move from the procedure into matching fitment, service references, diagnostics and the full exact-code ownership dashboard.

serviceOpen cabin air filter service & fitmentConnect the specification to matching parts, maintenance references and available procedures.partsSearch RU3 parts & fitmentSee source-backed replacement references filtered to this exact chassis code.topicCompare maintenance intervalsBrowse the same source-backed answer category across other exact vehicle codes.diagnoseTroubleshoot the related symptomOpen CarFactBook Diagnostics with RU3 and the related symptom already selected.vehicleOpen all RU3 owner dataReturn to the exact vehicle dashboard for maintenance, recalls, parts, valuation and owner tools.

What you need

  • Replacement cabin air filter — confirm exact RU3 fitment before purchase

Step by step

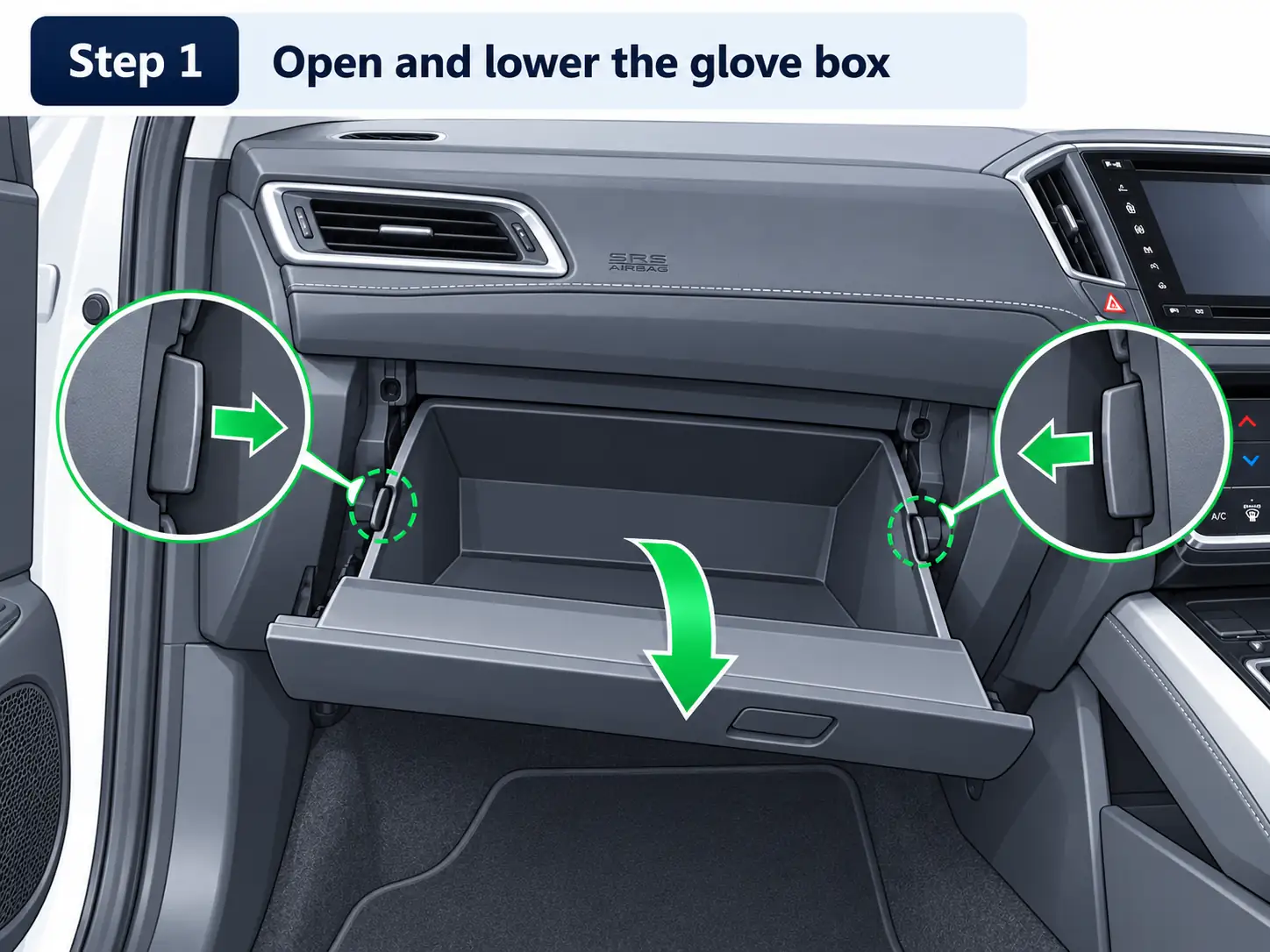

Schematic illustration of the Honda Vezel RU3 cabin-filter access sequence: glove box opened, damper disconnected, then glove box lowered.Schematic illustration · exact geometry not claimed
Step 1 · Honda Vezel RU3

Open the glove box, disconnect the damper and lower it

Open the glove box. Disconnect the damper first, then press the stoppers on both sides of the glove box inward and lower the glove box.

Visual evidenceDraft schematic
Action sequence has been checked against Honda's owner manual. Artwork remains schematic and does not claim exact RU3 component geometry. Media key: honda-vezel-ru3-cabin-filter:step-1.
Schematic illustration showing the cabin-filter cover area and the left and right cover tabs being released.Schematic illustration · exact geometry not claimed
Step 2 · Honda Vezel RU3

Remove the cabin-filter cover

Press the tabs on the left and right sides of the cabin-filter cover and remove the cover.

Visual evidenceDraft schematic
Action sequence has been checked against Honda's owner manual. Artwork remains schematic and does not claim exact RU3 component geometry. Media key: honda-vezel-ru3-cabin-filter:step-2.

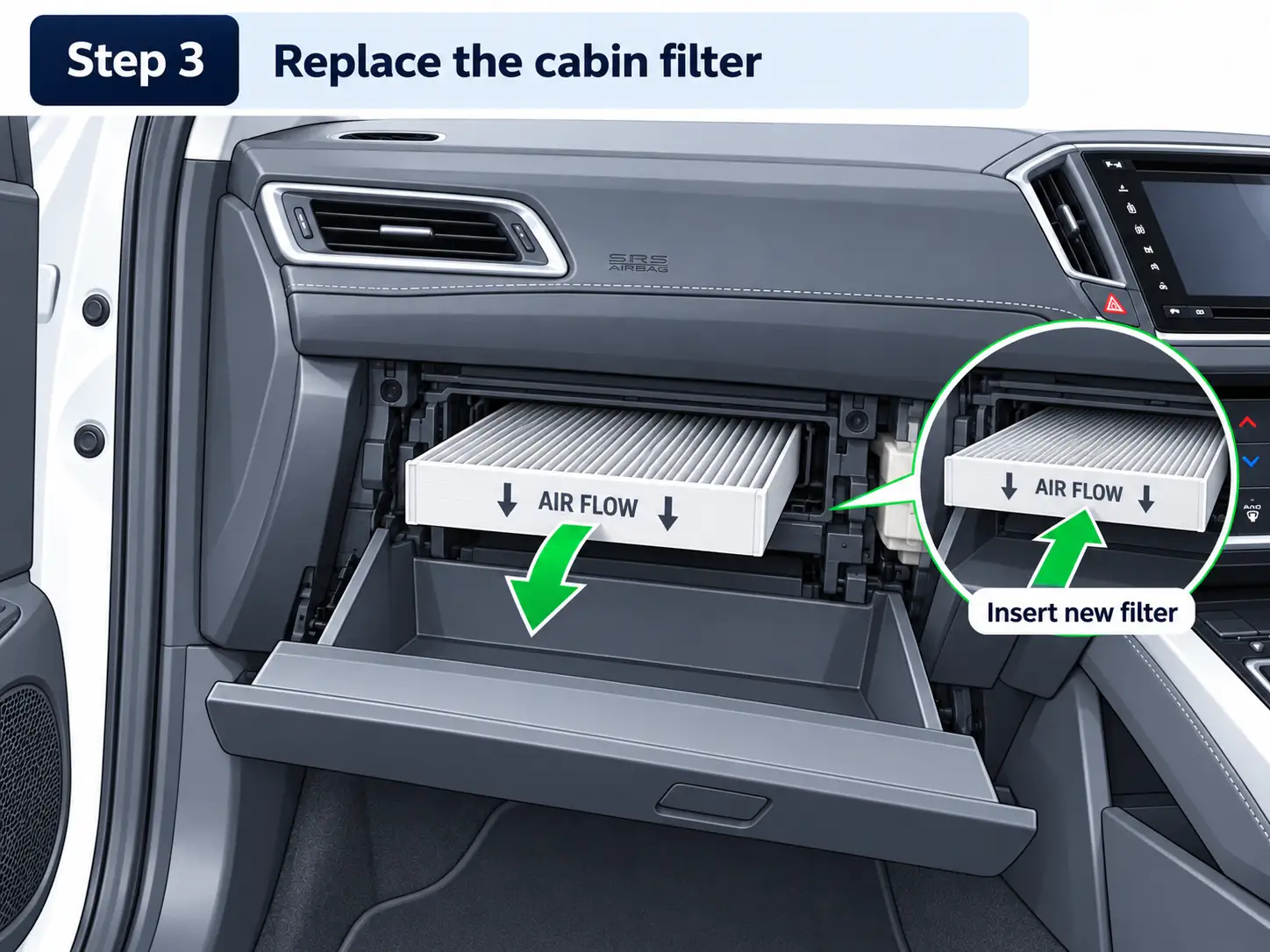

Schematic illustration showing cabin air filter replacement with the AIR FLOW arrow pointing downward.Schematic illustration · exact geometry not claimed
Step 3 · Honda Vezel RU3

Replace the filter with the AIR FLOW arrow pointing down

Remove the old cabin air filter and install the replacement. Honda specifies that the AIR FLOW arrow on the filter must point downward.

Visual evidenceDraft schematic
Action sequence has been checked against Honda's owner manual. Artwork remains schematic and does not claim exact RU3 component geometry. Media key: honda-vezel-ru3-cabin-filter:step-3.
Important: Honda source review supports the written sequence and AIR FLOW-down installation direction. CarFactBook illustrations remain schematic: do not treat drawn clip positions, damper geometry, dashboard shape or cover geometry as exact.
